-13%

VanEE Déco-Touch

$109.00

Déco-Touch VanEE Specifically designed to meet the greatest needs of consumers in terms of intelligent ventilation

Availability: Out of stock SKU: 40300 Category:

Description

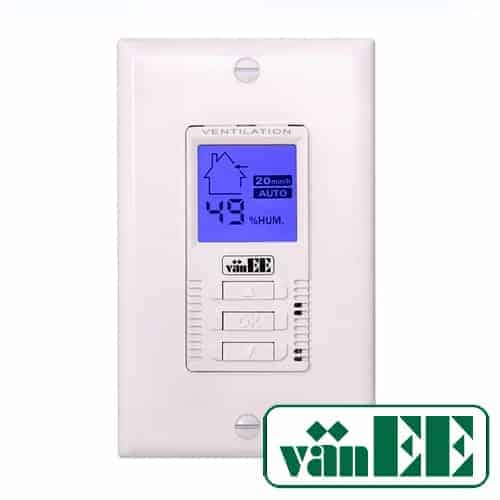

VanEE Deco-Touch wall control with a sleek design

Specifically designed to meet consumers’ greatest needs for intelligent ventilation, this state-of-the-art digital wall control is compatible with most air exchangers in the vänEE range and offers excellent value for money. . It is easy to use with just three buttons and allows the user to select manual or automatic (dehumidistat) modes as desired for peace of mind.



Recirculation mode

In this mode, air is recirculated at high speed inside the house for maximum indoor comfort. This is very useful when you have a wall-mounted air conditioner or a wall-mounted heat pump to standardize the temperature inside your home



20min / h mode

The ventilation unit exchanges air intermittently during a one hour cycle as follows: off for 40 minutes (or recirculation at high speed or low speed for 40 minutes) then exchanges air for 20 minutes by low speed. The cycle resumes at the end of the 20-minute air exchange for guaranteed energy efficiency and comfort.



Min mode

The device exchanges air with the outside at low speed.



Max mode

The device exchanges air with the outside at high speed.



Hygrometer

In the above modes, the hygrometer allows to choose a priority dehumidistat, which means that if the relative humidity (RH) inside the house exceeds the previously programmed rate, the ventilation unit will exchange the air at high speed until the RH rate is reached thus ensuring the owner ultimate comfort.



Housing

In a Decora® style with a 1 “by 1” LCD screen, it offers a digital display with blue backlight activated at the touch of a button, a display of indoor relative humidity in addition to an ingenious filter and core maintenance indicator in addition to animated exchange and recirculation indicators.



What is a Dehumidistat

An air exchanger is neither a dehumidifier nor a humidifier, but it can evacuate the excess humidity produced by human activities such as showers, cooking food, parties, etc. During the heating season, the outside air is drier than the indoor air; by activating the dehumidistat, if the relative humidity level (RH) inside the house exceeds the previously chosen rate, the ventilation unit will exchange air at high speed until the RH rate is achieved. Choose an HR rate between 30% and 55%. When the outdoor relative humidity is high (e.g. in summer), stop the operation of the dehumidistat.

What is Recirculation

Choose this mode when you feel that the indoor air is too dry in the cold season, or too humid in the hot season. In this mode, the device stops exchanging with the outside and recirculates the indoor air.

Intermittent mode

Choose this mode when you are away from your home for a few (also called 20 min / h) days. Also, when you feel that the indoor air is too dry in the cold season, or too humid in the hot season. In this mode, the device stops for 40 minutes per hour and exchanges with the outside, at low speed, during the last 20 minutes of the hour.

Compatibility with the following models:

60H / 60H + ERV / 60H-V + 100H / 200H (without recirculation) 40E / 40H + / 50H Novo + 100H / 200H 90H-V + 70E + 70E (without recirculation) 90H-V ECM HRV / 90H-V ECM ERV Gold 1001 HRV / 2001 HRV Gold 1001 ERV / 2001 ERV HE 2000/3000



Guide d’utilisation

Guide d’installation

Fiche Technique





Additional information

Weight 5 lbs
Dimensions 3 × 0.2 × 5 in

Reviews

There are no reviews yet.


Be the first to review “VanEE Déco-Touch”

60H / 60H+ ERV / 60H-V+ 100H / 200H (sans recirculation) 40E / 40H+ / 50H Novo+ 100H / 200H 90H-V+ 70E+ 70E (sans recirculation) 90H-V ECM HRV / 90H-V ECM ERV Gold 1001 HRV / 2001 HRV Gold 1001 ERV / 2001 ERV HE 2000 / 3000
