Description

The Bronze series introduces new VanEE 40H + HRV air exchangers to better meet your needs.

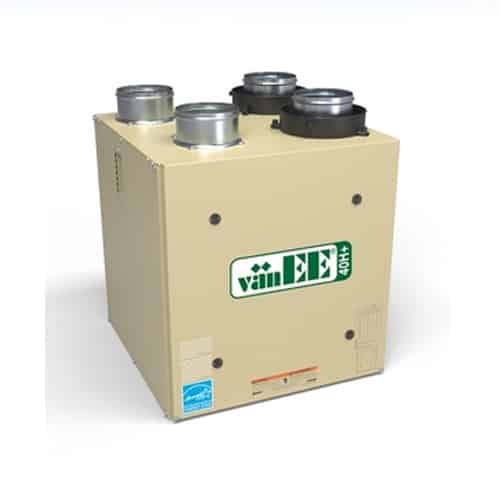

The VanEE 40H + Air Exchanger is the ideal choice for condos, apartments and all other small-area homes requiring up to 77 cfm of continuous ventilation. Thanks to its compact size and 4-inch vertical or horizontal vents, it can be installed in small spaces such as a closet or above a hot water tank in a furnace room. The 40H + has a single fan (patent pending), so it is quieter than any other similar HRV on the market.

Specifications

Air flow: 37-77 CFM

Mouth location: Sides or Top (horizontal or vertical)

Mouth size: 4 ” round

Sensitive heat recovery (-25): 60%

Controller not included

Dimension
Height: 16.3 ” (41.1 cm)
Width: 15.5 ” (39.4 cm)
Depth: 15.6 ” (39.6 cm)

• The ideal air exchanger for small spaces
• Now available with ventilation capacity up to 77 CFM to meet the ventilation needs of larger homes
• Advanced design fan for quiet operation
• Easy and quick installation thanks to horizontal or vertical vents
• ENERGY STAR® qualified
• Easy balancing with integrated flaps and pressure taps
• Now covered by a 5 year warranty
• At just 30 lbs (13.6 kg), it can be installed without having to open the device
• Equipped with pressure taps, balancing flaps, integrated hooks and belts to connect the ducts to the vents to simplify installation
• Removable terminal block for easy connection of main and auxiliary wall controls

INTERVIEW

All parts of the 40H + that may need maintenance can be removed in less than 5 minutes, allowing quick access for easy maintenance. The motor, fitted with permanent capacitor, is lubricated for life.

GUARANTEE

The 40H + is covered by a 5-year parts warranty only, while the heat recovery core is covered by a limited lifetime warranty with original proof of purchase.
