Description

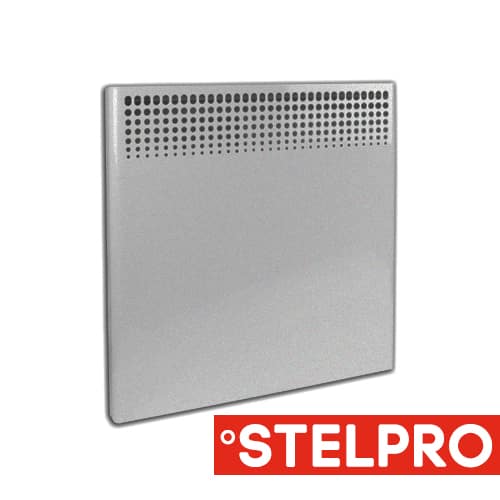

Economical stainless steel convector

The new Stelpro SHC electronic convector has rounded sides and clean lines that impress the gallery. It is available with a built-in ultra-precise electronic thermostat or without a thermostat, giving you the flexibility to use it however you want to control the temperature. This device with a modern look, available in 2 colors, is also offered in several voltages in order to be able to adapt to both commercial and residential applications. A real gem!

PRECISE ELECTRONIC CONTROL

A very precise electronic chronoproportional thermostat controls the device so as to minimize temperature differences and increase your level of comfort. This thermostat is specially designed to allow the appliance to heat more often, but at lower power. This principle keeps the temperature very stable in order to ensure high comfort. In addition, this keeps the case at a lower temperature, which makes it safer. The on / off cycles of the appliance are controlled chronoproportional, which increases or decreases the percentage of heating in a cycle depending on the desired temperature. Please note that the appliance becomes warmer when the heating demand is higher and remains warm when the demand is lower.

Automatic mode

To activate or deactivate this mode, you must switch to the “Choice of NIGHT mode duration” mode. The number of hours programmed in NIGHT mode must be 23 hours or less in order to activate the AUTOMATIC mode. To do this, press the two buttons simultaneously for three (3) seconds. To deactivate this mode, press the two buttons again for three (3) seconds. If the number of programmed hours is increased to more than 23, the AUTOMATIC mode is immediately deactivated (if it was activated). The icon for the AUTOMATIC mode turns on or off as appropriate. If you do not press any button for five (5) seconds, you will exit the programming mode and return to the NIGHT mode, the programming of the NIGHT mode will be reset and the automatic mode will activate if it has been activated. After 24 hours, the AUTOMATIC mode causes the automatic return to the NIGHT mode. The night programming is then reset and another 24 hour cycle begins. Even if the thermostat is in AUTOMATIC mode, you can switch from DAY mode to NIGHT mode as you wish, this will not influence the 24 hour cycle and automatic return to NIGHT mode.

Setting the desired temperature in DAY mode

By pressing one of the two buttons, you enter the setting mode, indicated by the flashing of the SUN icon. You can then see the current temperature setting in DAY mode. You can change the temperature using these same buttons, either by increasing (top button) or decreasing (bottom button) the setpoint. The temperature setpoint increases or decreases by 0.5 ° C (or 1 ° F) with each press. If you keep the button pressed, the temperature change speed increases, allowing quick and efficient adjustment. When the temperature is set, release the button. This will remain stored as the daytime temperature and the display will return to normal after three (3) seconds.

Setting the desired temperature in night mode

By pressing one of the two buttons, you enter the setting mode, indicated by the flashing of the MOON icon. You can then see the current temperature setting in NIGHT mode. You can change the temperature using these same buttons, either by increasing (top button) or decreasing (bottom button) the setpoint. The temperature setpoint increases or decreases by 0.5 ° C (or 1 ° F) with each press. If you keep the button pressed, the temperature change speed increases, allowing quick and efficient adjustment. When the temperature is set, release the button. This will remain stored as the night temperature and the display will return to normal after three (3) seconds.

Colors:

standards: stainless steel

Finishing:

epoxy-polyester powder paint

Manufacturing:
22 gauge steel case
case height promoting the chimney effect
20 gauge steel front
air enters under the device and exits through the front

Power and voltage:

500W / 1000W / 1500W / 2000W

240V / 208V

Elements:

two stainless steel tubular elements insulated by nylon sleeves to reduce expansion and contraction noise of metal subjected to heating cycles

Control:
electronic thermostat with integrated digital screen
wall thermostat (not included)

Installation:
surface
wall installation at least 4 ” from the floor
concealed wall mount (included)
rear cable ties (included)

Guarantee

10 years for the element and 3 years for all other components
